MAIN FEATURES
we make your work effective and pleasant !
Heating elements
Ceramic IR heating elements with a wavelength of 3.3 um used in DRYLINE series drying tunnels and fast IR lamps in X-serie flash cures are adapted to all types of inks used in screen printing.
energy efficiency
For drying tunnels, 150 mm thick insulated walls provide increased energy efficiency and thermal stability thanks to reinforced insulation. For flash cures, an extensive lamp power control program and a reflector system direct IR and thermal radiation directly onto the drying area.
HEAT MANAGEMENT
IR radiation combined with adjustable hot airflow provides complete control over IR radiation, convection flow rate, and temperature. This makes it a much more sophisticated curing process than direct heat drying alone.
MULTISUBSTRATE & MULTIINK CURING
DRYLINE series tunnels and X series intermediate dryers provide a wide range of substrate and ink drying options. These include plastisol, water-based, and solvent-based inks. Substrates include textiles, plastics, paper foil, and more, as well as temperature-sensitive materials.
SMART DESIGN
Smart design does not cost more in manufacturing and gives all advantages of having efficient and multifunctional dryer.
CONVEYOR SYSTEM
Build of heat resistant Fiberglas Teflon coated heavy duty belt. Driven by direct-on shaft AC reducer controlled by frequency converter. Independent conveyor belt control (variable speed and direction).
Warranty and service
12 months warranty. Remote support - unlimited.
Service contract on special terms.
SEGMENTAL EXPANDABLE DESIGN
In standard heat chamber is made of 2 meter length segment. Mostly used are 1 or 2 heat segments depending of productivity needed. The heat segments can be disassembled quickly into basic elements enabling transportation by narrow doors into production hall.
TEMPERATURE STABILITY
As described above temperature might mean different things for different curing process. Good understanding of this knowledge will help in curing process. Whatever MODE we work with DRYLINE series dryer it stays temperature and power density stable.
AIR CIRCULATION
Air circulation with adjustable flow, sucking hot air from uder the belt and guiding it evenly to the conveyor belt. Air is spreading around ceramic elements exchanging heat with it. Blower motor is temperature isolated.

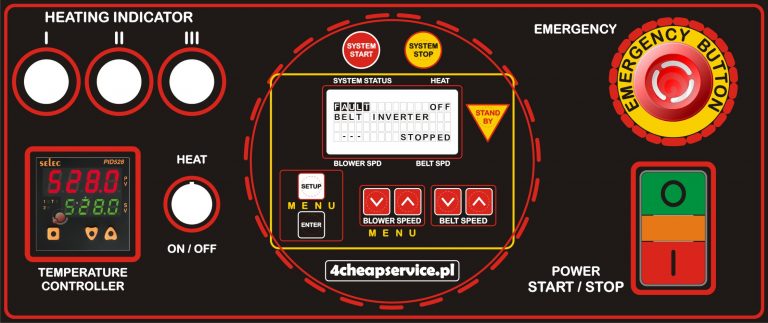

Control interfaces
Control interface consists of:
- PID temperature controller, LCD dispalay with keypad to control and set all parameters,
- Heating ON/OFF switch,
- LED heating indicators,
- E-STOP, ON/OFF buttons,
- 3 color light tower as signalization showing dryer condition,
- An extensive program that controls all heating and drive components with the function of displaying errors and quick problem analysis.
Reach to the customer
is the hardest of the ways to overcome.
Jarek 2026

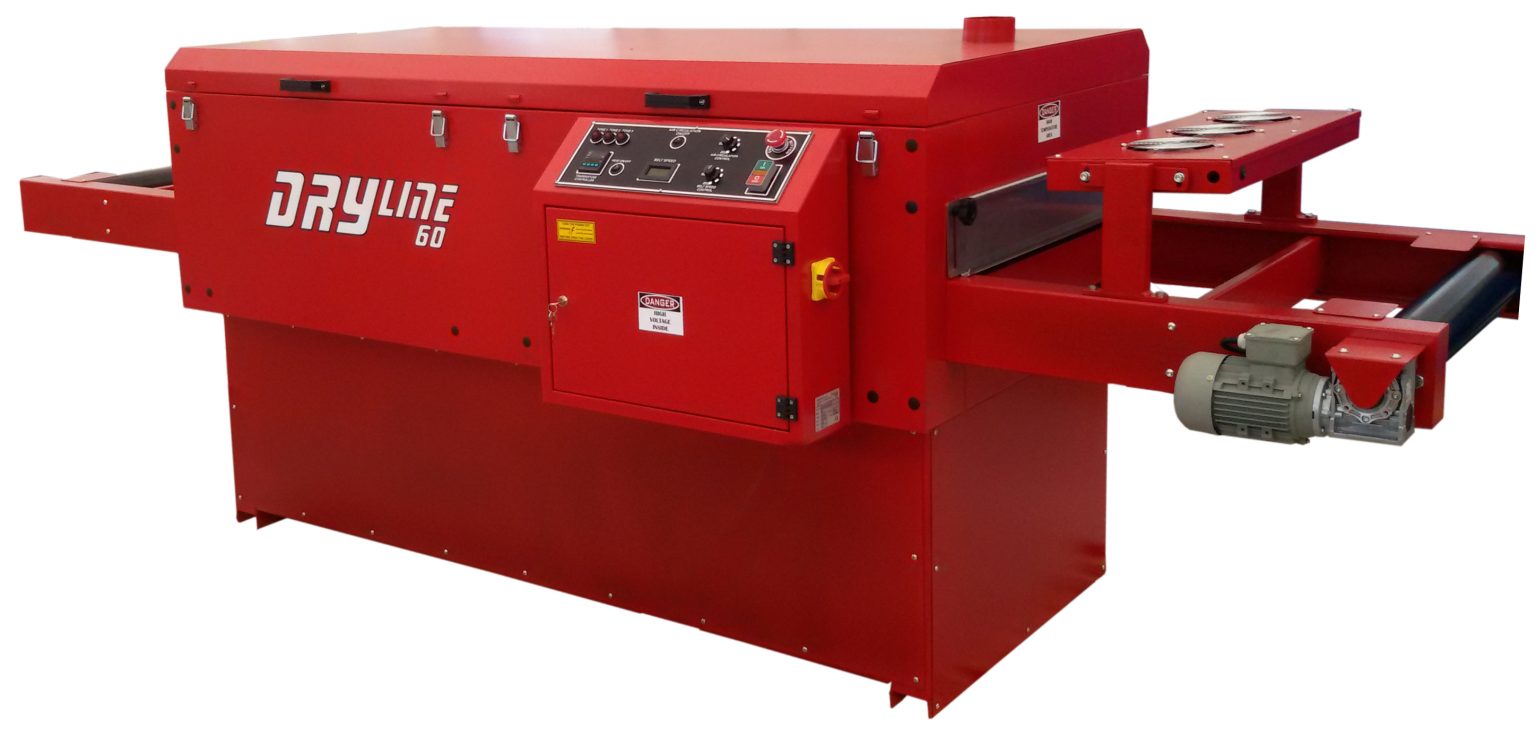

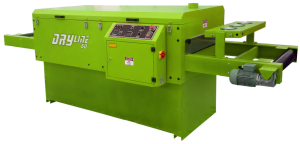

Sample configurations - no crating
Electric dryer for:
Plastisol inks
Water base inks
Solvent inks
60 cm belt width
200 cm heat chamber length
Air circulation
8,8 kW, 3PH, 400V
Flash dryer for:
Plastisol inks
Water base inks
50 CM – drying width
70 CM – drying length
Stand and optical sensor included
18 kW, 3PH, 400V
